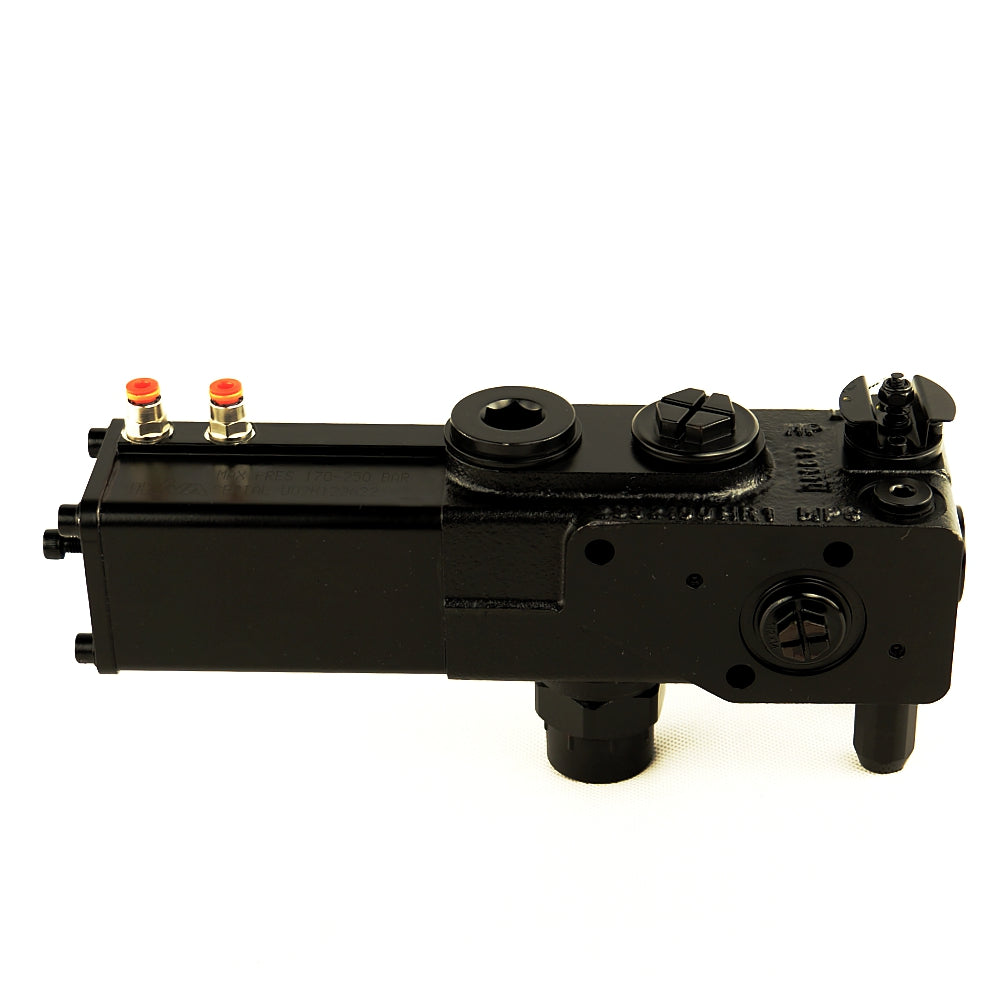

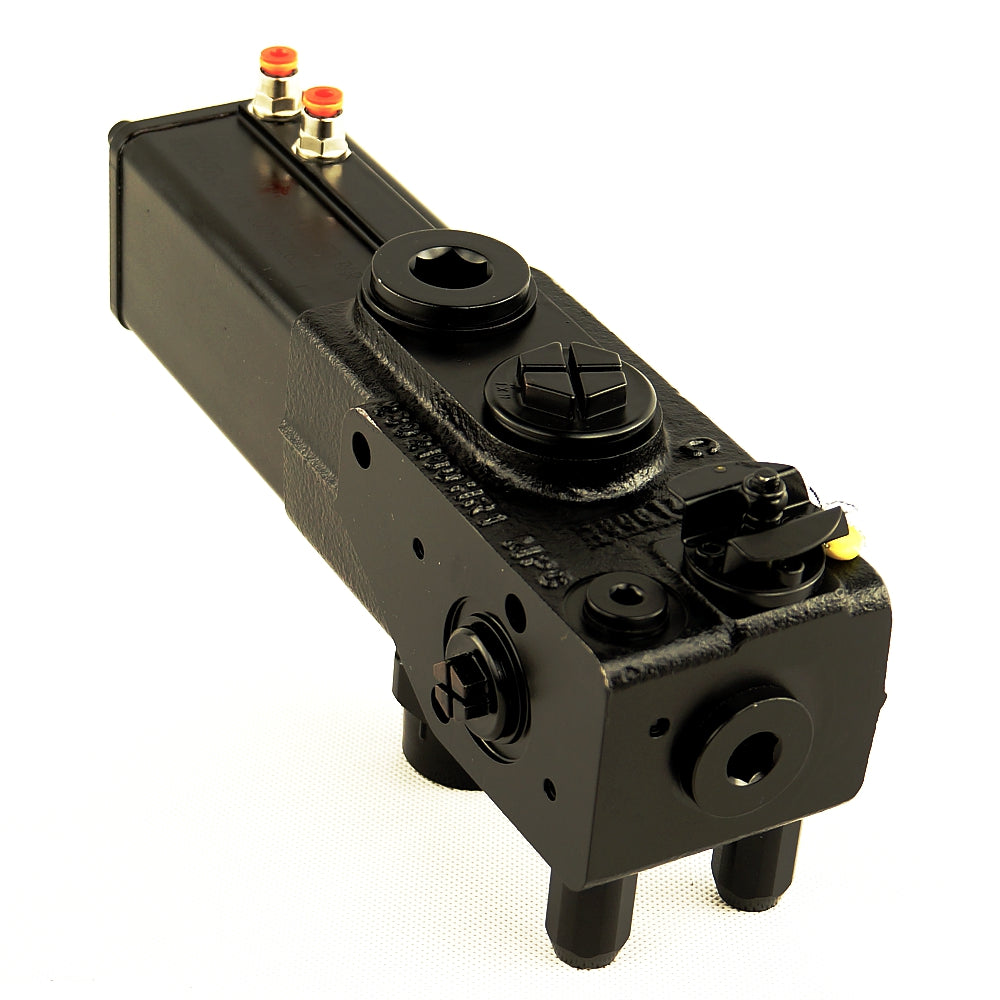

HT-TNK-2220 Hydraulic Tank Valve - 220 Bar

Key Specifications

• Valve Model: HT-TNK-2220-170-220-AS-P1"
• Low Pressure (LP): 170 bar (selected normally)
• High Pressure (HP): 220 bar (selected when air switch pressurized)
• Hydraulic Connections:
  • Pressure port (P): G1"
  • Tank port (T1): G1/2"
  • Tank port (T2): G1"
  • Cylinder port (C): G1"
  • Air connection (MPC): G1/4" (matches the 1/4" in the part number)

Additional Information

• The valve should be mounted strictly following the Hyva mounting instructions to prevent deformation of the housing due to incorrect washers or adapter use.
• Ideal air pressure for the valve operation is 8 bar, and the air source should be dry and clean.
• The valve housing is painted black (RAL9005), and welding on the valve is not recommended.
• Repair kits and spare parts are available under different part numbers for components such as seals, pistons, air cylinders, and pressure relief cartridges.
